IPCO's supercooling system uses advanced precrystallizing technology to solidify subcooling melts that would otherwise remain liquid below their melting point. By forming pastilles or flakes, these melts are efficiently solidified using a steel belt-based cooling system. Our solution ensures clean, controlled cooling for various industries.
IPCO’s supercooling system integrates a precrystallizing unit, feeding equipment and a steel belt-based cooling line to process chemicals that stay liquid even when cooled below their melting point. These “super-cooled” chemicals – or subcooling melts – lack the crystal nuclei required for natural crystallization. Our system introduces a suspension of crystal nuclei, allowing for rapid solidification on the single belt cooler.
With excellent thermal conductivity, the steel belt ensures fast cooling, reducing energy costs and minimizing vapor emissions. The system’s precise control of cooling temperature and timing guarantees a high-quality end product.
Supercooling systems
100+
Systems installed worldwide
Steel belt coolers
1935
World’s first steel belt cooler installed by IPCO
Steel belts
120+ years
World’s first steel belt in 1901
Supercooling is achieved by creating a homogeneous suspension of crystal nuclei within the melt using a scraped-surface heat exchanger, known as a precrystallizer. This features a cold cylindrical surface and a heated rotor to form a slurry (a mixture of nuclei and liquid product). The slurry then solidifies on the steel belt in a very short time.
The melt is applied to the steel belt using either a Rotoform 4G SC, for premium quality pastilles of various sizes, or a casting box or weir/double roller feeder for producing flakes. As the steel belt moves, heat transfers from the product to the cooling water sprayed underneath the belt, solidifying the material in a controlled process.
Our industrial closed-loop water cooling systems ensure complete separation between the cooling water and the product, eliminating the risk of contamination. The cooling water is collected, re-cooled and reused, minimizing waste. Additional top-side cooling with conditioned air can be applied when needed.
Benefits
Precrystallization – enabling solidification of subcooling chemical melts
Premium solidification – Rotoform pastillation or flake production
Superior thermal properties of steel belt – for efficient cooling
Direct from-the-melt solidification – Ensures uniform product quality
Environmentally-friendly operation – No risk of cross-contamination in the cooling process
Low emissions – Very low vapor and gas emissions – no exhaust air treatment required
Cooling and solidification
Tailored industrial air and water cooling solutions designed to fit your product, process, and performance goals.
Film casting
IPCO’s film casting systems deliver precise, high‑quality thin films for advanced industrial applications.
Forming
IPCO’s custom forming systems deliver efficient, precise solutions for diverse industries, from food and pharmaceuticals to energy and automotive.
Freezing
IPCO’s advanced freezing systems with stainless steel belts ensure faster cooling, product quality, and exceptional energy efficiency.
Bitumen block forming system
High speed block forming and packing system for bitumen

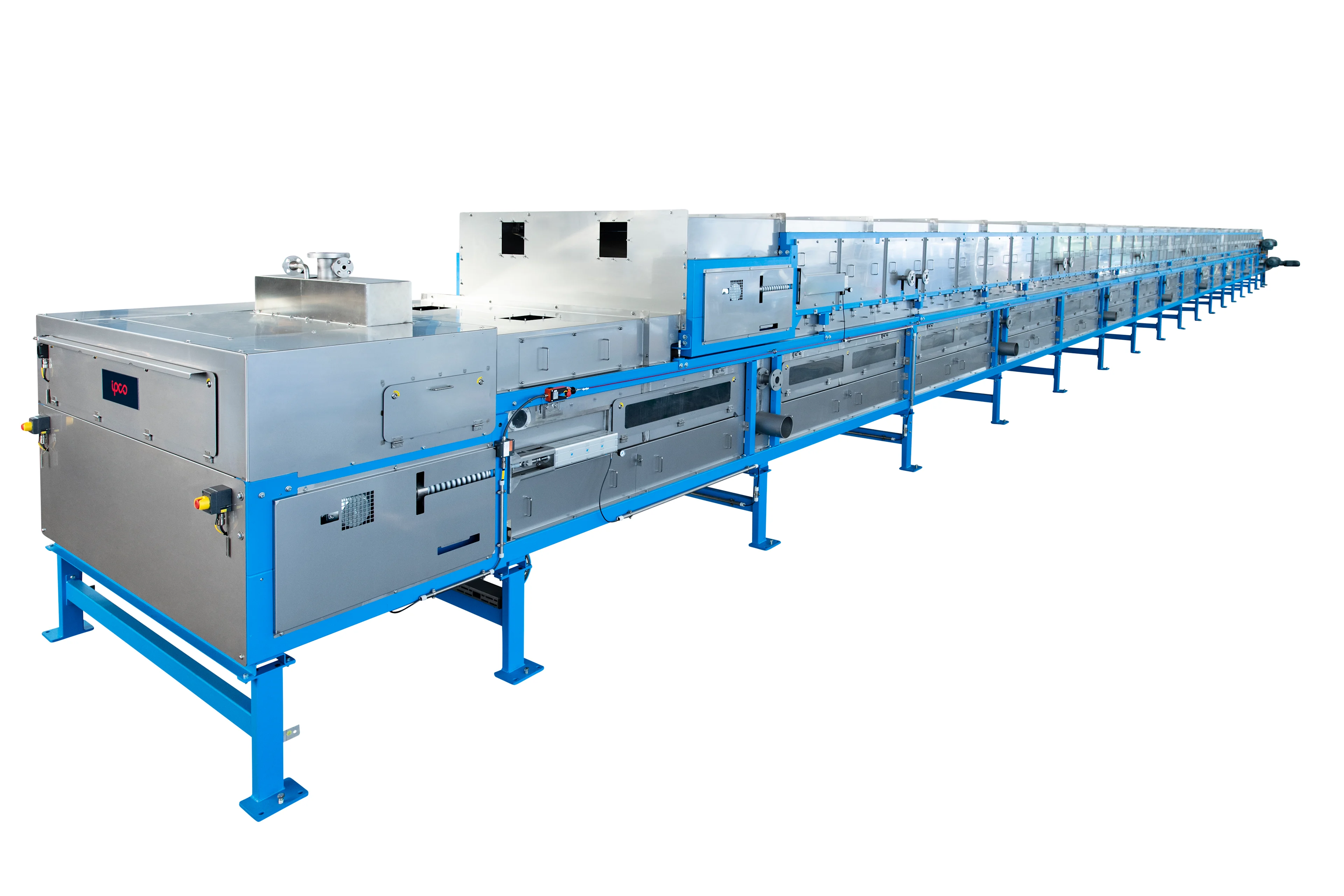

Double belt coolers
High capacity solidification of chemical melts into flake form.
Rotoform 4G SC
For subcooling melts in supercooling plants
Single belt coolers
Steel belt-based cooling/solidification in pastille or flake form.
