Triple pass plastic molding line (TPE)
The innovative TPE moulding line is based on the rotary depositor module (RDM) for capacities of 700–2,000 kg/hour. A piston depositor module (PDM) option is also available for medium-capacity requirements (700 kg/hour) and/or larger chips.
Triple pass cooling on a plastic conveyor belt enables high throughput rates from a system with a significantly reduced footprint.

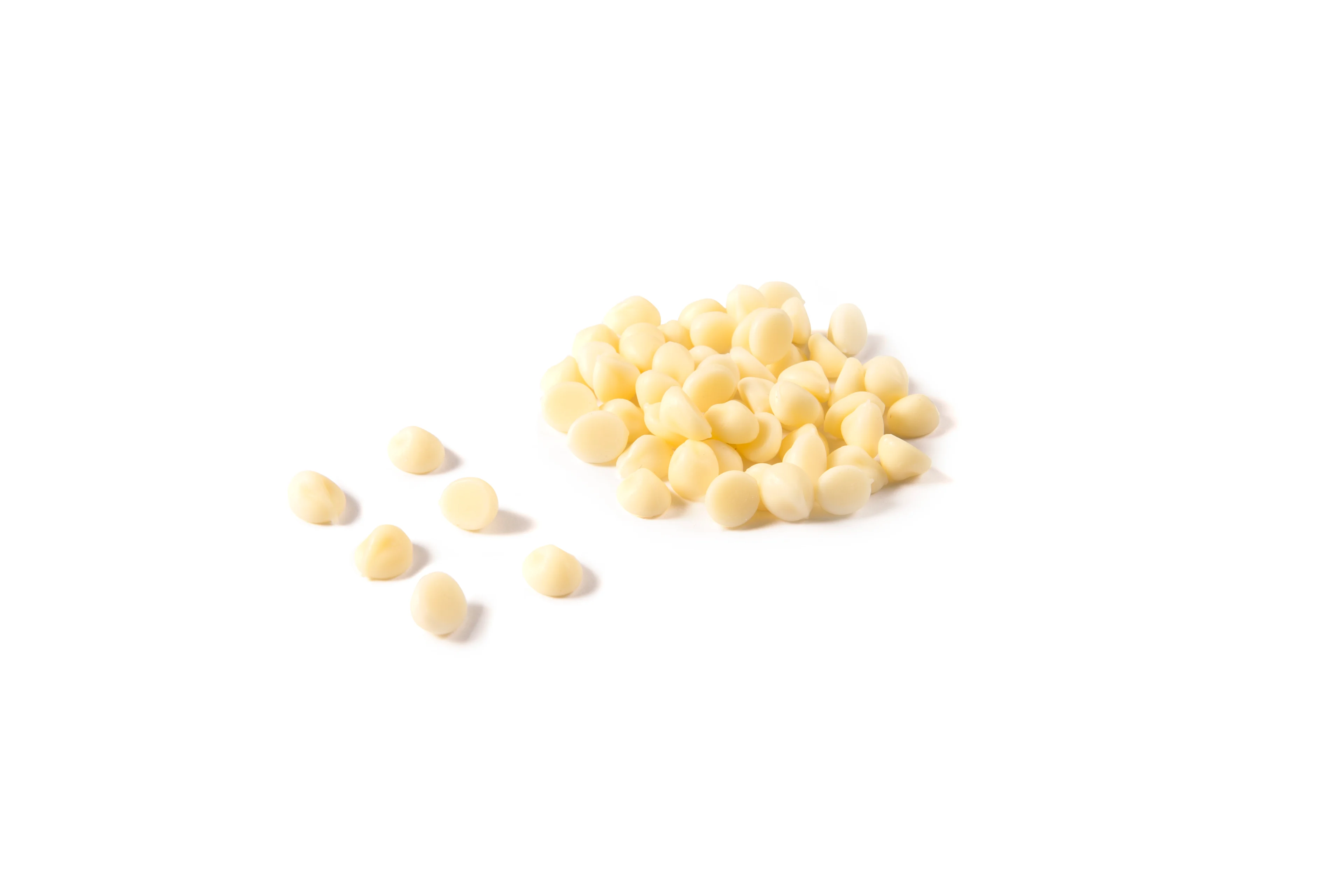

Chips of different sizes can be produced by exchanging the depositor outer shell of the RDM. Systems based on the RDM also incorporate a separate extruder unit and a servo cutter for chunk production.
Easy to install
1
Week to set up
Volume handling
Up to 2,000 kg/hr
Capacity
Proven
2,500+
Rotoform systems installed worldwide
How it works
The drops are deposited on the first of two 1,500 mm plastic belt conveyor systems and transported through the cooling tunnel. On reaching the end they are carried back on the underside of the return stand before being removed onto a second conveyor. They travel through the tunnel for a third time and are discharged for downstream processing.
Benefits
High-productivity, small-footprint system: Our triple pass process solutions enable high throughput rates from systems with a compact footprint
Rapid product changeover: Switch chip sizes in under 30 minutes by changing the depositor shell on our Rotary Depositor Modules
Three times the productivity: Our triple layer systems stack three production lines in a single unit just 40 m long
One production line, three high-quality products: We can combine chip, wafer, and chunk production in a single production line
Benefits
A key benefit of our triple pass plastic belt cooler lies in its design. The entire unit is preassembled at our works and will fit into a standard 40 ft container for easy shipping. On arrival at site, installation by our engineering team can be completed in as little as one week.
Triple pass plastic belt cooling tunnel
High output 700–2,000 kg/hour
Flexible/quick changeover <30 minutes
Separate extruder (RDM systems only)
Servo cutter
Modular set-up (40 ft container shipment)
Pre-assembled unit – on-site installation in one week
High optimum overall equipment effectiveness (OEE) and efficiency
Low maintenance costs
Fast, easy cleaning
Centralized product and utility connections
